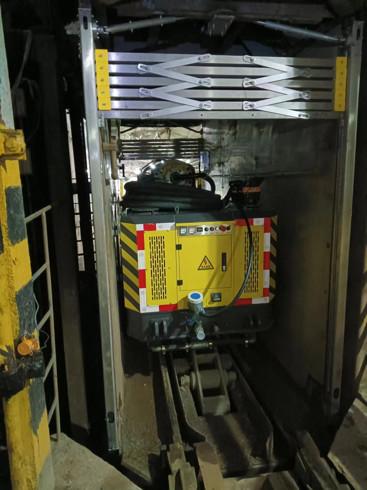

KD-KDQ150 DTH Drill Equipment For Underground Mining Tire type Walking Style

Ask Lasest Price
Brand Name :	POTENTIAL / POTENCY
Model Number :	KD-KDQ150
Certification :	ISO9001:2015
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	120 units per year
Delivery Time :	45 working days

Add to Cart

Product Details
Company Profile

KD-KDQ150 DTH Drill Equipment For Underground Mining Tire type Walking Style

KD-KDQ150 Experience Superior Performance and Safety with Our DTH Drill Machine for Underground Mining

Product Description:

Our underground down the hole drilling rig KD-KDQ150 is developed by our company based on the new characteristics of underground mining technology in China, and optimized and improved on the existing down the hole drilling rig products. This model optimizes the original rock drilling parameters and uses system integration technology to design the overall size of the machine with low height, small turning radius, flexible walking, and high safety, better adapting to the development needs of domestic mines.

Features:

1) 360 ° all-round rock drilling, flexible operation and wide range.
2) Adopting a tire type chassis walking system, it has high traction and strong climbing ability.
3) By adopting advanced hydraulic integration technology, the reliability of the hydraulic system has been improved.
4) Adopting advanced unloading rod devices and automatic anti jamming systems to ensure efficient operation of the drilling rig.
5) Adopting modular design for easy maintenance and replacement.
6) By adopting advanced wireless remote control technology, it is possible to achieve safer and more convenient remote and multi-directional operation.
7) The parameters of each drilling rig can be infinitely adjusted according to the rock conditions and drilling depth, which improves the driving ability, smoothness, and overload resistance of the main working mechanisms such as rotation and propulsion.

Technical Parameters:

Mainly used in: underground deep hole mining technology
Component	Name	Unit	Parameter
Drilling Parameters	Drilling Diameter	mm	76-203
	Drill Depth	m	0-100
	Drilling Elevation Angle	°	-5～90
	Drill Pipe Diameter	mm	60/76/89/114
	Drill Pipe Length	mm	1000/1250/1500
	Drilling Arm Rotation Angle	°	-180～+180
Advance Parameters	Advance the Itinerary	mm	1200/1450/1700
	Maximum Propulsion Force	N	≥45000
	Maximum Lifting Force	N	≥45000
	Maximum Propulsion Speed	m/min	≥10
	Compensation Itinerary	mm	830
Walking Parameters	Walking Style	-	Tyre-type
	Turning Radius	mm	2000
	Walking Speed	km/h	1.2
	Gradeability	°	14
Rotation Parameters	Rotation Speed	r/min	0～34
Rotation Parameters	Rotating Torque	N.m	≥3000
Machine Parameters	Motor Power	kW	11+11
	Control Method	-	Wireless Remote Control
	Compressed Air Pressure	MPa	0.7～2.1
	Minimum Ground Clearance	mm	210
	Weight	kg	4100
External Dimensions of the Equipment (in Transport Condition)		3650X1200X1870(±50)

Applications:

Our KD-KDQ150, the down the hole drilling rig is widely used in the field of mining, especially in small and medium-sized mines. Due to its high degree of mechanization, low investment cost, and convenient operation, the down the hole drilling rig has been widely used in small and medium-sized mines at home and abroad. It is suitable for perforation operations in medium hard mineral rocks and can control ore grade and improve blasting quality by drilling various inclined holes.
