| Ask Lasest Price | |
| Brand Name : | POTENTIAL / POTENCY |
| Model Number : | TC-16090 |
| Certification : | ISO9001:2015 |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 120 Units Per Year |
| Delivery Time : | 45 Working Days |

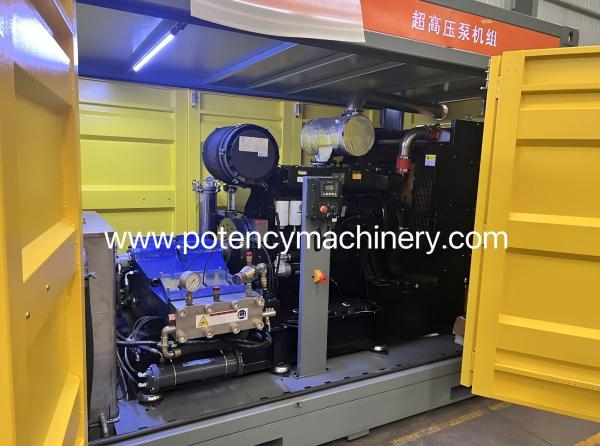

TC-16090 is the new generation of intelligent cement tanker ultra-high pressure cleaning equipment independently developed by our company, with trailer function.
1. Efficient Cleaning: Cement tanker washing equipment is usually cleaned with a high-pressure water stream, which is able to penetrate and remove stubborn dirt and residue from concrete tankers.
2. Environmental protection and energy saving: Many cleaning equipment adopts water circulation system to realize the multiple recycling of clean water and save water resources. At the same time, no dust and dust will be generated during the cleaning process, which is conducive to protecting the environment and the health of operators.
3. Safe and reliable: The key components of cleaning equipment such as pump heads and nozzles are usually made of high-quality materials, which can be used continuously for a long time and are not easily damaged. The equipment adopts a fully enclosed design to prevent material leakage and ensure the safety and reliability of the cleaning process.
| Basic standard configuration | ||
| Name | Configuration Parameter | Qty |
| High pressure plunger pump | P380 series(1600Bar) | 1 |
| Hydraulic station | - | 1 |
| Pressure regulation | Pressure regulating valve | 1 |
| Explosion proof film seat | Burst pressure 55000psi | 1 |
| Box body | 3380(L)*1800(W)*2430(H)mm | 1 |
| Water tank | 500L 3mm thick reinforced stainless steel transfer water tank | 1 |
| power | 360HP Weichai engine | 1 |
| Boosting system | 0.75kw horizontal booster pump | 1 |
| Filter | 30 inch 304 stainless steel filter, filtration accuracy 5um-1um, with pressure gauge display | 2 |
| Pipeline system | - | 1 |
| Control system | Integrated console+remote control | 1 |
| Auxiliary system | ||
| Fault shutdown | Standard configuration | |
| Shutdown due to water shortage | Standard configuration | |
| lighting | Standard configuration | |
◆ Significantly reduce the risk of injury - no need to climb in to
clean up the deposit
◆ Avoid pneumoconiosis – avoid exposure to silica dust
◆ High efficiency - reduce maintenance costs and reduce the load of
hydraulic system
◆ Improve economic efficiency - greatly improve fuel efficiency,
and run faster
◆ Long service life - significantly improve the economic life of
the stirring tank
|
|
