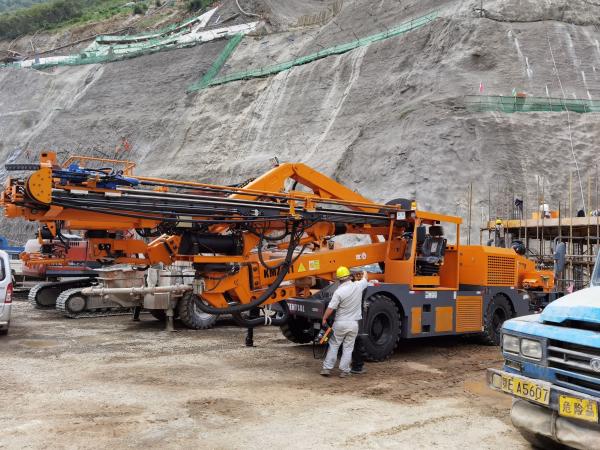

KMZ611 Customizable Drilling Anchoring Grouting Equipment for Underground hydropower Plant Construction
Potential/Potency KMZ611 anchor injection trolley is developed specifically for underground hydropower engineering, integrating functions such as hydraulic rock drilling, anchor rod installation, grouting, and mesh installation. Can be used for tunnel support in water diversion projects, tunnels and slopes in railways, highways, deep foundation pits in high-rise buildings, and support operations in underground hydropower plants. It fills the gap in the current field of water conservancy and hydropower where there is no mechanized construction equipment.
1, Chassis form: Engineering chassis, four-wheel drive, four-wheel
steering;
2, Power: Dual power of diesel and electric;
3, Control system: Controller control, parameter large screen
display,
4, Arm control intelligent assistance system;
5, The main arm integrates hydraulic rock drilling drilling system,
grouting system, and anchor rod installation system;
6, The auxiliary arm integrates a high-altitude work platform and a
fully hydraulic multi degree of freedom robotic arm;
| Item | Parameter | Value | Unit |
| 1 | Weight | 25500 | kg |
| 2 | Walking Speed | 0~15 | km/h |
| 3 | Rock Drill Power | 16.5 | kw |
| 4 | Drilling Diameter of Rock Drill | Φ43～Φ76 | mm |
| 5 | Drilling Depth of Rock Drill (Single Rod) | 6 | m |
| 6 | Drilling Speed of Rock Drill | 1-1.2 | m/min |
| 7 | Water-cooled Diesel Engine | 119/2200 | kw/rpm |
| 8 | Minimum Turning Radius | Inner≤3.4m；Outer≤8.5m | m |
| 9 | Gradeability | 15 | ° |
| 10 | Theoretical Maximum Flow Rate of Grouting System | 2500 | l/h |
| 11 |
| 11 | m |
| 12 | Maximum Working Width | 11 | m |
| 13 | Dimensions in Transport State (Length x Width x Height) | 13200*2500*3450 | mm |
| 14 | Air Compressor Power | 3.6 | kw |
In tunnel engineering, the water and electricity anchor rod trolley is mainly used for support operations during tunnel excavation. During tunnel excavation, it is necessary to provide support to the surrounding rock to maintain stability. The anchor rod trolley can efficiently perform tasks such as drilling anchor rods, automatic clamping and pushing anchor rods, and automatic grouting, improving the speed and quality of tunnel excavation.
In underground engineering, water and electricity anchor rod
trolleys are widely used in underground factory excavation, subway
construction, water conservancy engineering, underground pipe
galleries and other scenarios. These projects require reinforcement
of tunnels, installation of supports, and installation of
protective walls to ensure the stability and safety of underground
structures. The anchor rod trolley can quickly and accurately
complete these tasks, improving construction quality and safety.
|
|
