Product Description:

One of the most important features of the Underground Mining Equipment product is its maximum traction of ≥110kn. This ensures that it can easily move heavy loads of material without slipping or losing traction. This is especially important in underground mining operations where the conditions can be challenging.
The loading height of the Underground Mining Equipment product is also impressive, standing at 2400mm. This means that it can easily load and transport large volumes of material with ease. This makes it an ideal option for mining operations where efficiency is key.
The standard container for this product is 12.6 cubic meters, making it perfect for transporting large volumes of material. This is particularly useful for underground mining operations where there is limited space to maneuver.
The Underground Mining Equipment product is specifically designed for use in underground mining operations. It is a reliable and efficient option that can handle the toughest conditions. It is ideal for use in a range of applications, including underground mining dump truck operations.
In summary, the Underground Mining Equipment product is a powerful and reliable option for mining equipment for underground operations. With a ground clearance of ≥280mm, maximum traction of ≥110kn, loading height of 2400mm, and a standard container of 12.6 cubic meters, it is an efficient and effective option for underground mining operations. It is a vital piece of equipment for mining operations that require a reliable and efficient option that can handle the toughest conditions.

Features:

Underground mining trucks play a crucial role in the transportation of ore and waste rock from the mine to the surface or processing facilities. These vehicles are designed to operate in narrow tunnels and rugged terrains.
Their robust construction and ability to withstand heavy loads allow them to adapt to harsh underground environments. The mining trucks can operate normally even in extreme conditions, ensuring that the transportation process is not hindered.
Furthermore, the high carrying capacity of these mining trucks improves transportation efficiency significantly. With the ability to load a large number of ores in one transportation, the transportation process becomes faster and more efficient, thus reducing overall operational costs.

Technical Parameters:

Below is a revised list of technical specifications for the item:
Standard container: 12.6 m³
Tramming Capacity: 25000 kg
Maximum traction: >110 KN
Dump position height max: 5500 mm
Loading height: 2400 mm
Ground clearance: >280 mm
Angle of incidence: >14°
Minimum turning radius (inner side): 6300 mm
Minimum turning radius (outer side): 9900 mm
Ability to climb (Overload): >14°
Diesel engine type/power: YC6L330-T300/243 kw
Dimensions (L* W* H): 7800*2570*2675 mm
Vehicle Weight: 13000 kg
Reverse speed: 9.0 km/h
Cylinder: rated pressure: 160 bar | operational stroke: 1915 mm
Speed:

• gear : 8.0 km/h
• gear : 13.0 km/h
• gear : 21.0 km/h
• gear : 29.0 km/h

Applications:

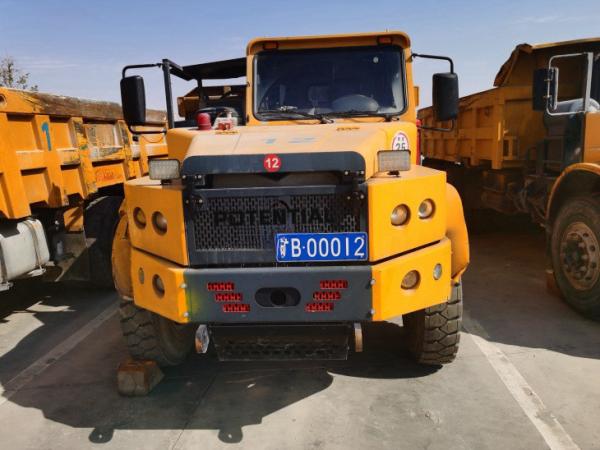

The primary use of our KDUQ-25 underground mining trucks is for the transportation of materials such as ore, waste rock or other types of materials in underground mines. These heavy-duty dump trucks are purposefully designed for effective transportation operations within the underground mine terrain. These dump trucks are capable of adapting to complex underground environments while maintaining stable operations regardless of the extreme conditions they may encounter.
Our KDUQ-25 underground trucks are developed with premium features that make them stand out. These features include the ability to operate in tight spaces, excellent durability, high storage capacity and they are equipped to handle steep underground terrain. Our dump trucks are designed to move heavy loads with maximum efficiency, and they have proven their reliability and durability time and time again in underground mining operations around the world.
We understand that the safety of underground operations is paramount to the mining industry. That is why our KDUQ-25 dump trucks incorporate superior safety features that ensure safe and efficient transportation of materials. These features include automatic braking systems, advanced GPS tracking and communication systems, and ergonomic cabs that ensure the safety and comfort of the operator.
In conclusion, our KDUQ-25 underground dump trucks are designed to meet the transportation needs of underground mining operations. These trucks are unmatched in their ability to handle the extreme conditions of underground mines, while also emphasizing safety and efficiency. With their innovative features, superior strength and reliability, KDUQ-25 dump trucks are a top choice for underground mining transportation operations.

Packing and Shipping:

Product Packaging:

• The Underground Mining Equipment will be securely packaged in a wooden crate to prevent damage during transit.
• All necessary components and accessories will be included in the crate.
• The crate will be labeled clearly with the product name, model number, and handling instructions.

Shipping:

• The product will be shipped via a reliable freight carrier.
• The shipping cost will be calculated based on the destination and weight of the package.
• The shipping time will vary depending on the destination and carrier.
• The customer will receive a tracking number once the product has been shipped.
• If there are any issues with the shipment, the customer should contact our customer service team immediately for assistance.

FAQ:

Q1: What is the brand name of this underground mining equipment?
A1: The brand name of this underground mining equipment is POTENTIAL or POTENCY.
Q2: What is the model number of this underground mining equipment?
A2: The model number of this underground mining equipment is KDUQ-25.
Q3: Where is this underground mining equipment manufactured?
A3: This underground mining equipment is manufactured in China.
Q4: Does this underground mining equipment have any certification?
A4: Yes, this underground mining equipment has ISO9001:2015 certification.
Q5: What is the minimum order quantity for this underground mining equipment?
A5: The minimum order quantity for this underground mining equipment is 1 unit.
Q6: Is the price negotiable for this underground mining equipment?
A6: Yes, the price of this underground mining equipment is negotiable.
Q7: What are the packaging details for this underground mining equipment?
A7: The packaging details for this underground mining equipment are 1 unit in 1*40'FR or Bulk Ship.
Q8: What is the delivery time for this underground mining equipment?
A8: The delivery time for this underground mining equipment is 45 working days.
Q9: What are the payment terms for this underground mining equipment?
A9: The payment terms for this underground mining equipment are T/T and L/C.
Q10: What is the supply ability of this underground mining equipment?
A10: The supply ability of this underground mining equipment is 120 units per year.
