| Brand Name : | POTENTIAL / POTENCY |
| Model Number : | KDL307 |
| Certification : | ISO9001:2015 |
| Price : | Negotiable |
| Delivery Time : | 45 working days |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 120 units per year |

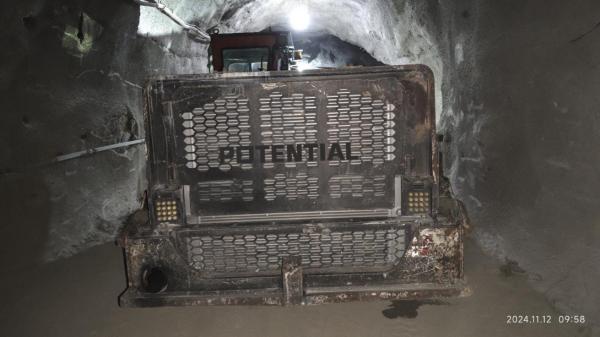

KDL307 LHD Max. Raising Position Height 4703mm Underground Mining Loader for Your Business
Our KDL307 Underground Loader, also known as LHD, utilizes a diesel engine as its primary source of power. This is advantageous because diesel engines have a higher energy density, which allows them to produce more power efficiently. Additionally, our loader utilizes hydraulic transmission, which allows for smoother gear shifts and higher precision in performance.
The KDL307 also features an articulated frame, which provides greater flexibility in navigating tight spaces and sharp turns. In addition, the loader's tire walking feature allows for improved traction and stability on rough terrain and uneven surfaces. Lastly, the front loading and unloading equipment of the KDL307 enables efficient and swift loading and unloading of necessary materials and equipment.
Underground loaders are equipped with a unique structural design and powerful maneuverability, which make them perfect for narrow mine tunnels and sites. Unlike tracked equipment, these loaders eliminate constraints, improve machine power and maneuverability, reduce diesel emissions, and enhance environmental protection capabilities.
The cab design of underground loaders fully adheres to the principles of ergonomics, allowing drivers to work in a comfortable and safe environment. With the application of electronic information technology and computer network technology, the degree of automation has increased significantly, which reduces driver fatigue and enhances overall productivity.
Underground loaders are designed with anti-mud and waterproof oil seal, maintenance-free copper sleeve systems, making maintenance easier and more convenient. The vehicle frame is made of thickened steel plates, which enhances rigidity, leading to longer service life.
The following specifications are available for the item:
| Items | Parameter |
|---|---|
| Tramming | 3 m³ |
| Tramming Capacity | 6700 kg |
| Maximum traction | ≥150 kN |
| Maximum Breakout Force | ≥130 kN |
| Ground clearance | ≥290 mm |
| Raising position height max | 4703mm |
| Dump position height max | ≥1935 mm |
| Dump position height min | ≥1592 mm |
| Departure angle | 14° |
| Steering angle | ±42.5° |
| Ability to climb(heavy load) | ≥20° |
| Raising Time | 6.5s |
| Lowing Time | 3.5s |
| Dumping Time | 2.5s |
| Output | 160kw/2200rpm |
| Dimensions (L* W* H) | 9190*2253*2290 mm |
| Vehicle Weight | 19200 kg |
| Speeds Forward | 1st gear : 4.0 km/h 2st gear : 7.5 km/h 3st gear: 13.0 km/h 4st gear: 20.0 km/h |
| Hydraulic system | Working pressure: 220 bar Main pump flow rate: 185 L/min |
| Minimum turning radius | Inner: 2981 mm Outer: 5850 mm |
Our KDL307 underground Load-Haul-Dump vehicle is primarily utilized for underground mining operations, specifically in the loading and transportation of loose materials following blasting activities. It may also find application in railway, highway, water conservancy, and tunnel engineering projects, particularly in environments with challenging working conditions.
The KDL307 is well-suited for operations in narrow, low, and muddy work surfaces, making it an ideal choice for mines and other similar projects that require vehicles capable of thriving in such environments. The vehicle's design is specifically tailored to meet the needs of such working conditions, as it provides the necessary functionality and durability required to ensure superior performance.
Our Underground Mining Equipment is designed to provide safe and efficient mining operations. We offer comprehensive technical support and services to ensure optimal performance of our equipment.
Our team of experienced technicians provides on-site support, troubleshooting, and maintenance services to minimize downtime and increase productivity. We also offer training programs for operators and maintenance personnel to ensure safe and effective use of our equipment.
In addition, we provide remote monitoring and diagnostic services to proactively identify any potential issues and provide timely solutions. Our goal is to provide our customers with reliable and efficient equipment and support to maximize their mining operations.
