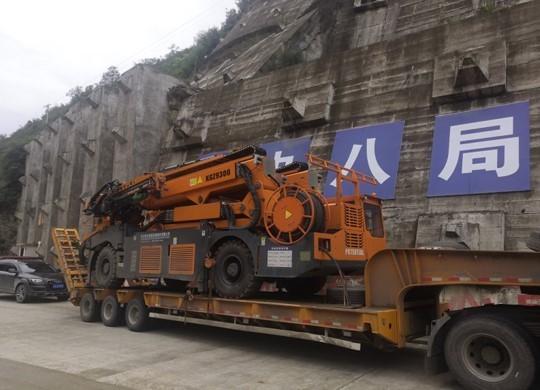

High Capacity Arch Installation Trolley 3000Kg Platform Load Capacity 13Kw Rock Drill Power 22 Degree Gradeability KGZ9300
As tunnel construction processes increasingly adopt mechanization, it has become essential to have products that can deliver efficient and manpower-saving performance, making the need for practical value in such products imperative. Unfortunately, some products available in the market today either cannot be utilized for mechanization or only achieve partial mechanization, without contributing significantly to improving work efficiency or cutting down on construction personnel.
Given this scenario, Potency, a company reputed for producing advanced multi-arch support manipulator and multifunctional rock drilling machine technologies, has developed a product that combines these two distinct advantages. The new product satisfies the operational requirements of the entire process of tunnel arch erection, while meeting the demands of improving work efficiency and reducing personnel.
Critical to note is that the product has already applied for multiple invention patents and is positioned to revolutionize the tunnel construction industry significantly. This breakthrough innovation is in line with the growing need for companies to improve their operations by leveraging advanced technologies and innovative solutions that offer practical and effective results.
The engineering chassis of this machine is highly efficient for off-road travel and the four-wheel drive mechanism ensures excellent climbing ability. Furthermore, the four-wheel steering system can make tight turns with ease.
The machine features a dual power system, powered by both diesel and electric sources. The diesel can be used for walking and can independently support the arch structure.
The arm frame of the machine consists of three working arms which have a folding and telescopic structure. The middle arm can be extended to achieve greater reach. The arm frame can be folded and returned to the frame for transportation purposes. There is also a dual work platform with arch dragging and clamping devices on the platform.
The machine is equipped with a dual hydraulic rock drilling mechanism that can provide drilling support for various purposes. The main arm has a multi-arch forming device, and there is also an air-conditioned cab which ensures maximum comfort for operators. Additionally, the reversing camera allows for added safety during operation.
The machine is controlled by a controller control system which features a large screen display of parameters and allows for real-time monitoring of system operation status. Lastly, the arm frame control intelligent assistance system helps to achieve a rapid positioning of the arch frame and improves overall efficiency.
Item, parameter, value, and unit information:
| Item | Parameter | Value | Unit |
|---|---|---|---|
| 1 | Maximum Load of The Main Arm | 3000 | kg |
| 2 | Scope of Application of Steel Arches | Ⅰ12～Ⅰ25a | / |
| 3 | Rock Drill Power | 13 | KW |
| 4 | Drilling Diameter of Rock Drill | Φ33～Φ64 | mm |
| 5 | Drilling Depth of Rock Drill (Single Rod) | 4.5 | m |
| 6 | Drilling Speed of Rock Drill | 1-1.5 | m/min |
| 7 | The Walking Speed | Low Speed Gear:0～8 High Speed Gear:8～18 | km/h |
| 8 | Minimum Turning Radius | Inner≤3m；Outer≤6m | m |
| 9 | Gradeability | 22 | ° |
| 10 | Maximum Load of Aerial Work Platform | 400 | kg |
| 11 | Maximum Working Height | 13 | m |
| 12 | Maximum Working Width | 15 | m |
| 13 | Dimensions in Transport State (Length x Width x Height) | 99200×2800(3526)×3650 | mm |
| 14 | Weight | 35000 | kg |
The installation of steel frames in tunnels is crucial in ensuring the stability and safety of the tunnel structure. The arch frame installation trolley is specifically designed for this purpose. By using the installation trolley, the steel frame can be accurately positioned and quickly installed, improving work efficiency and installation accuracy.
In addition to the steel frame, the arch installation trolley is also used for installing mesh. Mesh is a vital component of tunnel lining, responsible for dispersing and absorbing geostress, preventing rock loosening and collapse. The installation trolley can carry and fix the mesh, allowing quick and accurate installation in place.
Connecting bars are essential connecting components between steel frames and mesh sheets, ensuring the integrity and stability of the entire supporting structure. The arch installation trolley can assist in the installation of connecting bars, ensuring that each connection point is firm and reliable.
Safety inspection and risk mitigation are critical factors during tunnel construction. The arch installation trolley is equipped with relevant equipment and tools to help construction personnel conduct safety inspections and risk mitigation work. This enables them to timely discover and handle potential hazards, ensuring construction safety.
Underexcavation may occur during tunnel excavation. The arch installation trolley can assist construction personnel in handling underexcavation, ensuring that the cross-sectional dimensions of the tunnel meet the design requirements.
The installation of explosives is a critical step during tunnel construction, especially during blasting operations. The arch installation trolley is equipped with safety protection devices and operating platforms. This helps construction personnel safely and accurately install explosives, ensuring the safety and effectiveness of blasting operations.
Anchor rods are vital components of tunnel support, used to fix surrounding rock and prevent collapse. The arch installation trolley can carry anchor rods and installation equipment to assist construction personnel in installing anchor rods, improving construction efficiency and safety.
|
|
