| Brand Name : | POTENTIAL / POTENCY |
| Model Number : | KD10A-1BCD(L) |
| Certification : | ISO9001:2015 |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 120 Units Per Year |
| Delivery Time : | 45 Working Days |
Features

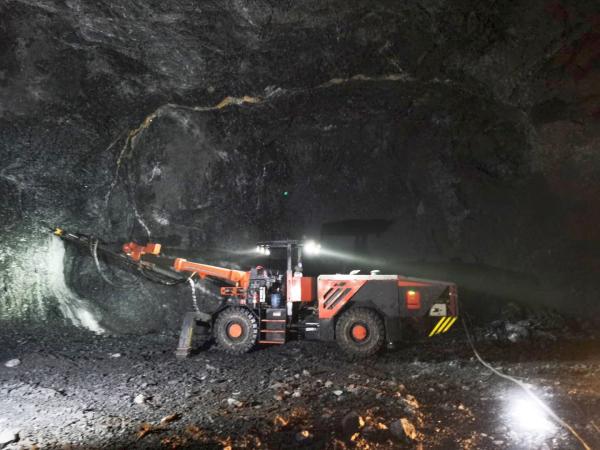

The device is designed with a compact structure, strong overall rigidity, low center of gravity, flexible maneuverability, and stable operation. The drilling operation adopts electric work, which greatly improves the working environment, reduces noise, dust, and energy consumption, and greatly improves construction efficiency and quality. The flexible hydraulic rock drilling mechanism can perform rock drilling operations on the working face, roof, side walls, and floor of the tunnel. This machine can not only drill boreholes for excavation, but also conveniently drill anchor holes.
Specifications
| Main Technical Parameters of KD10A-1BCDL | |
| Body | |
| Overall size(LxBxH) m | 10.5×1.45×2.1(2.94Wih ceiling) |
| Hole diameter mm | φ43- φ76 |
| Drilling speed m/min | 0.8-2 |
| Section(B×H)m | 2.5×2.5-5×5 |
| Rock drill impact frequency kW | 7.5 |
| Service voltage | 380VAC 50Hz |
| Total power kW | 57.1 |
| Total power kg | ≈8500 |
| Running chassis | |
| Chassis structure | Articulated |
| Running from | Rubber wheel |
| Running speed km/h | 0-9 |
| KW | 50 |
| Ground clearance mm | 185 |
| Grade ability(smooth-riding surface) | 14° |
| Min.turning radius m | 4.2(Inner side)/6.0(Out side) |
| Arm | |
| Quantity of Arm | 1 |
| Parallel function | YES |
| Telescope function | YES |
| Thruster | |
| Total length m | 4.42 |
| Drill pipe length m | 3.09 |
| Hole depth m | 2.70 |
| Air system | |
| Drill lubrication air volume m/min | 0.21 |
| Drill lubrication air pressure Mpa | 0.2-0.3 |
| Water system | |
| Pipe reel | NO |
| Water supply m³/h | 2 |
| Rock drill water pressure Mpa | 0.8~12 |
| Colder entrance water pressure Mpa | 0.3~0.6 |
| Other configuration | |
| Cable reel | YES |
| Quantity of baskets | N O |
| Lifting ceiling | YES |
| lighting | 5 High brightness LED lights |
| Extinguisher | (4kg*1) Hand-held dry powder fire extinguisher 4kg×1 |
|
|
