| Brand Name : | POTENTIAL / POTENCY |
| Model Number : | KDM12A-1BCDL |
| Certification : | ISO9001:2015 |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 120 Units Per Year |
| Delivery Time : | 45 Working Days |
Applications

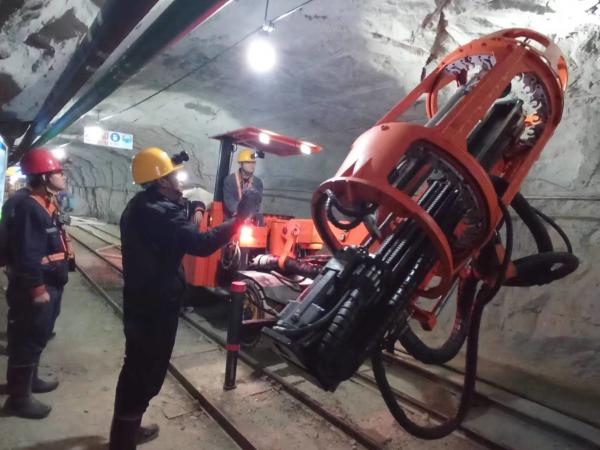

The main application scenarios of mining anchor rod trolleys include geological environments such as mines, tunnels, and underground engineering. It is mainly used to support unstable rock layers, ensuring the safety and stability of the working face
The specific application scenarios include:
Mining: In mining operations, the mining anchor rod trolley is used
to support the rock layers where the mine tunnels, vehicles, and
equipment are located, ensuring the safety of the working face.
Especially in complex or narrow construction sites, anchor rod
trolleys can better meet work requirements and improve production
efficiency.
Tunnel: In tunnel construction, anchor rod trolleys are used to
support the tunnel roof and side walls, completing processes such
as drilling anchor rods, hanging nets, and installing anchor rods,
greatly reducing support operation time and improving construction
efficiency
Underground engineering: In underground engineering construction
such as excavation of underground factories, anchor rod trolleys
can perform blasting drilling, anchor rod drilling, automatic
clamping and pushing of anchor rods, automatic grouting and other
operations to meet various construction needs.
Features
1, Remote control electric proportional operating system: easy to
operate, safe and reliable, precise positioning;
2, Universal modular chassis design: convenient for equipment
maintenance and management;
3, Automatic drilling and anti jamming function: improves the
lifespan of drilling tools and reduces failure rates;
4, Automatic recording of construction data: Upload construction
data through a dedicated APP for easy management and analysis.
Specifications
| Main Technical Parameters of KDM12A-1BCDL | |
| B o d y | |
| Overall size(LxWxH) mm | 6800×1290×1550(2350 Rising height) |
| Rock drill impact frequency kW | 7.5 |
| Hole diameter mm | 32- 45 |
| Drilling speed m/min | 0.8-2 |
| Applicable bolt length | 1800 (standard) |
| Working area(Tunnel height) mm | 2900~5000 (standard) |
| Other bolting rob(Tunnel height) mm | Length +1100 |
| Bolting rob capacity | 10 |
| Net hanging | YES |
| Service voltage | 380VAC 50Hz |
| Total power kW | 32.6 |
| Total power kg | ≈6600 |
| Running chassis | |
| Chassis structure | Articulated |
| Running from | Rubber wheel |
| Running speed km/h | 0-6 |
| KW | 44.6 |
| Ground clearance mm | 150 |
| Grade ability(smooth-riding surface) | 14° |
| Min.turning radius m | 2500(Inner side)/4000(Out side) |
| Boom | |
| Boom Quantity | 1 |
| Boom type | Mixed coordinate boom |
| Telescope function | YES |
| Bolting mechanism | |
| Guide rail length mm | 2750 |
| Drill pipe length mm | 1960 |
| Hole depth mm | 1900 |
| Bolting rob type | Tube seam |
| Bolting plate size mm | ≤150 |
| Bolting rob installation | Auto |
| Air system | |
| Air flow m³/min | 0.21 |
| Air pressure Mpa | 02-03 |
| Water flow m³/min | 2 |
| Flusing water pressure Mpa | 0.8~1.2 |
| Water inlet pressure Mpa | 0.3~0.6 |
| Other configuration | |
| Cable reel | Optional |
| Quantity of baskets | YES |
| Lifting ceiling | YES |
| lighting | 3 High brightness LED lights |
| Extinguisher | YES (4kg*1) Hand-held dry powder fire extinguisher 4kg×1 |
|
|
