| Brand Name : | POTENTIAL / POTENCY |
| Model Number : | KD06A-1BCD |
| Certification : | ISO9001:2015 |
| Price : | Negotiable |
| Delivery Time : | 45 working days |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 120 units per year |

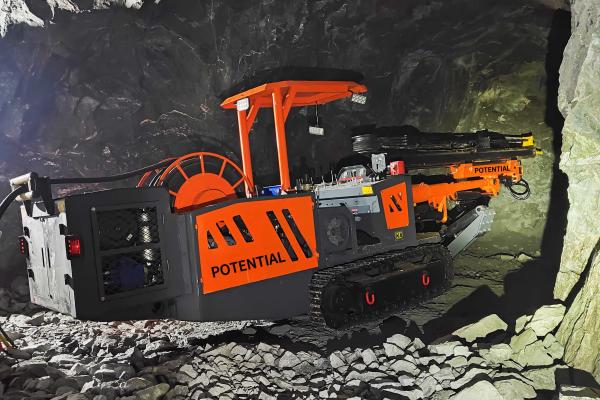

The KD06A-1BCD mining hydraulic rock drilling rig is designed
specifically for excavation and mining operations in small
underground mining faces in China. This drilling rig features a
compact structure that is easy to handle, with a small turning
radius and flexible maneuverability for working in small spaces.
The crawler walking mechanism allows the vehicle to operate on all
types of terrain, which is especially important when working in
challenging mining environments. In addition, the rig is equipped
with hydraulic components that enable it to perform drilling tasks
efficiently and accurately.
Overall, the KD06A-1BCD drilling rig offers reliable and effective
performance for small-scale underground mining operations, and its
features make it an ideal choice for professionals who work in the
field.
The KD06A-1BCD mining hydraulic rock drilling rig is designed
specifically for excavation and mining operations in small
underground mining faces in China. This drilling rig features a
compact structure that is easy to handle, with a small turning
radius and flexible maneuverability for working in small spaces.
The crawler walking mechanism allows the vehicle to operate on all
types of terrain, which is especially important when working in
challenging mining environments. In addition, the rig is equipped
with hydraulic components that enable it to perform drilling tasks
efficiently and accurately.
Overall, the KD06A-1BCD drilling rig offers reliable and effective
performance for small-scale underground mining operations, and its
features make it an ideal choice for professionals who work in the
field.
High power diesel engine offers immense power support to enable stable operations of equipment on steep landscapes. The engine is designed to handle the rugged outdoors, making it ideal for applications where heavy-duty machinery is required.
The translational drilling arm structure facilitates fast positioning between each borehole. The equipment is designed to operate without dead corners, making it perfect for small mine level roadway operations. The structure enables operators to perform drilling tasks with ease and speed, leading to increased productivity.
Maximum transition speed of up to 5km/h allows the equipment to move faster, improving efficiency while minimizing downtime. The rapid transition speed between sites cuts down on the wait time and helps to get the job done quickly, saving time and increasing productivity.
The equipment is built to operate in all terrain conditions within a slope of 14°, making it highly adaptable to the outdoor terrain. Its strong adaptability ensures that it performs well in all kinds of conditions from flat terrains to steep landscapes, making it perfect for various applications.
The Main Technical Parameters of the KD06A-1BCD are as follows:
Overall Size(LxBxH)m: 7.05×1.06×1.55(2.35With ceiling)
Hole Diameter mm: φ43- φ76
Depth of Drilling: 2.7
Drilling Speed m/min: 0.8-2
Section(B×H)m: 2×2-3.5×3.5
Rock Drill Impact Frequency kW: 7.5
Service Voltage: 380VAC 50Hz
Total Power kW: 32.6
Total Power kg: ≈6200
Chassis Structure: Rigidity Whole Body
Running From: Crawler Track
Running Speed km/h: 0-3
Ground Clearance mm: 240
Grade Ability(smooth-riding surface): 14°
Min.Turning Radius m: 3.4(Inner side)/4.9/5.1(Out side)
Quantity of Arm: 1
Type of Arm: Mixed Coordinate Boom
Total Length m: 4.42
Drill Pipe Length m: 3.09
Hole Depth m: 2.70
Drill Lubrication Air Volume m/min: 0.21
Drill Lubrication Air Pressure Mpa: 0.2-0.3
Water Supply m³/h: 2
Rock Drill Water Pressure Mpa: 0.8-12
Colder Entrance Water Pressure Mpa: 0.3-0.6
Cable Reel: YES 60M
Quantity of Baskets: YES
Lifting Ceiling: Optional
Lighting: 3 High Brightness LED Lights
Extinguisher: Hand-held Dry Powder Fire Extinguisher 4kg×1
Mining:
Mining operations in small mines' alleyways require precision and
accuracy in order to locate each blast hole. Rock drilling rigs are
an efficient tool for such operations as they are able to quickly
locate each hole and operate without any blind spots or
difficulties.
Tunnels:
Rock drilling rigs are widely used in tunnel construction projects
in the domains of highways, railways, water conservancy, mining,
and national defense engineering construction. Their capability to
drill through hard rocks effortlessly make them an ideal choice for
such kind of projects.
Culvert:
Excavation projects of culverts require specialized machinery and
tools to achieve success. Rock drilling rigs are the perfect fit
for such projects as they are suitable for such operations and have
been proven as an efficient and effective tool for culvert
excavation.
Metallurgy:
In major projects such as metallurgy, rock drilling rigs play a
significant role in carrying out rock drilling and drilling
operations, as they are capable of handling heavy-duty workloads
and can operate with maximum efficiency.
Petrochemical industry:
Rock drilling rigs have been known to provide stable rock drilling
operations in petrochemical industries. They help improve work
efficiency and ensure that operations are carried out in a smooth
and effective manner.
The Jumbo Rock Drill is a highly specialized product designed for
drilling and blasting in mining and construction applications. Our
product technical support team is dedicated to ensuring that our
customers get the best possible performance from their Jumbo Rock
Drill. We offer a range of services to support our customers
including:
- Technical troubleshooting and issue resolution
- Preventative maintenance programs to ensure optimal performance
and minimize downtime
- On-site training and support for operators and maintenance
personnel
- Remote monitoring and diagnostic services to identify potential
issues before they become major problems
- Spare parts and replacement component sourcing and supply
Our team is committed to providing prompt and effective support to
keep your Jumbo Rock Drill running smoothly and efficiently.
Contact us today to learn more about our services and support
programs.
A: The brand name of the rock drill is POTENTIAL / POTENCY.
Q: What is the model number of the rock drill?
A: The model number of the rock drill is KD06A-1BCD.
Q: Where is the rock drill manufactured?
A: The rock drill is manufactured in China.
Q: What is the certification of the rock drill?
A: The rock drill is certified with ISO9001:2015.
Q: What is the minimum order quantity for the rock drill?
A: The minimum order quantity for the rock drill is 1 unit.
Q: What is the price of the rock drill?
A: The price of the rock drill is negotiable.
Q: What are the packaging details for the rock drill?
A: The packaging details for the rock drill are 1 unit in 1*40'HQ.
Q: What is the delivery time for the rock drill?
A: The delivery time for the rock drill is 45 working days.
Q: What are the payment terms for the rock drill?
A: The payment terms for the rock drill are T/T, L/C.
Q: What is the supply ability of the rock drill?
A: The supply ability of the rock drill is 120 units per year.
|
|
