| Brand Name : | POTENTIAL / POTENCY |
| Model Number : | KD12A-1BCD(L) |
| Certification : | ISO9001:2015 |
| Price : | Negotiable |
| Delivery Time : | 45 working days |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 120 units per year |

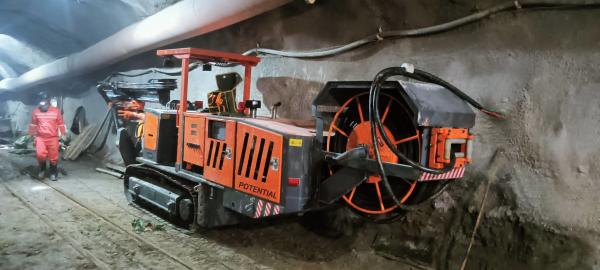

7.5Kw Rock Drilling Jumbo KD12A-1BCD(L) High Impact Frequency and 0.8-2m/min Drilling Speed for Speed Drilling
KD12A-1BCD(L) is a durable machine that can work on any terrain within a slope of 14°. Equipped with a high-power diesel engine, the transition speed can reach up to 5 kilometers per hour, allowing it to achieve high-speed transition.
It features a polar coordinate mechanical translation drilling arm structure with independent intellectual property rights, which allows for rapid positioning between each borehole. Additionally, there are no blind spots or dead corners on the entire working face, ensuring optimal visibility and safety.
Designed for small mining operations, KD12A-1BCD(L) is perfect for alleyway operations and is sure to meet all of your drilling needs.
The entire machine is designed with complete hydraulic drive technology, which allows the rock drilling speed to range between 0.8-2 meters per minute. For added convenience and safety, the system includes features such as the automatic stop of impact at the end point, automatic anti-jamming drill, and induction of water slag discharge.
The aircraft boasts a small and compact structure, low center of gravity, as well as a flexible maneuverability for stable operations and strong climbing abilities. The use of track walking allows rock drilling to be carried out on a 14-degree inclined slope with ease.
The hydraulic rock drilling mechanism is highly flexible, enabling it to perform rock drilling operations on tunnel working faces, side walls, roofs, and floors with ease. This versatile machine is not limited to drilling and excavating of blast holes, but can also conveniently drill anchor holes in accordance to section sizes.
The machinery is primarily designed for the excavation and digging of small to medium-sized tunnels and culverts in various industries such as mining, metallurgy, hydropower, railway, highway, among others.
Furthermore, the machine is designed with both electric and diesel engine walking capabilities. With the diesel engine walking operation, the equipment transfer speed, construction efficiency, and quality can be significantly improved.
Whether you need to excavate small to medium-sized tunnels or culverts, the machinery is the perfect fit for you. It is built to operate efficiently and effectively in many different fields and industries, making it a versatile piece of equipment that can help streamline your operations.
| Main Technical Parameters of KD12A-1BCDL | |
| Body | |
| Overall size(LxBxH) m | 10.5×1.45×2.1(2.94Wih ceiling) |
| Hole diameter mm | φ43- φ76 |
| Drilling speed m/min | 0.8-2 |
| Section(B×H)m | 2.5×2.5-5×5 |
| Rock drill impact frequency kW | 7.5 |
| Service voltage | 380VAC 50Hz |
| Total power kW | 57.1 |
| Total power kg | ≈8500 |
| Running chassis | |
| Chassis structure | Articulated |
| Running from | Rubber wheel |
| Running speed km/h | 0-9 |
| KW | 50 |
| Ground clearance mm | 185 |
| Grade ability(smooth-riding surface) | 14° |
| Min.turning radius m | 4.2(Inner side)/6.0(Out side) |
| Arm | |
| Quantity of Arm | 1 |
| Parallel function | YES |
| Telescope function | YES |
| Thruster | |
| Total length m | 4.42 |
| Drill pipe length m | 3.09 |
| Hole depth m | 2.70 |
| Air system | |
| Drill lubrication air volume m/min | 0.21 |
| Drill lubrication air pressure Mpa | 0.2-0.3 |
| Water system | |
| Pipe reel | NO |
| Water supply m³/h | 2 |
| Rock drill water pressure Mpa | 0.8~12 |
| Colder entrance water pressure Mpa | 0.3~0.6 |
| Other configuration | |
| Cable reel | YES |
| Quantity of baskets | N O |
| Lifting ceiling | YES |
| lighting | 5 High brightness LED lights |
| Extinguisher | (4kg*1) Hand-held dry powder fire extinguisher 4kg×1 |
Product Packaging:
Shipping:
A: The brand name of the rock drill is POTENTIAL (or POTENCY).
Q: What is the model number of the rock drill?
A: The model number of the rock drill is KD12A-1BCD(L).
Q: Where is the rock drill made?
A: The rock drill is made in China.
Q: Is the rock drill certified?
A: Yes, the rock drill is certified with ISO9001:2015.
Q: What is the minimum order quantity for the rock drill?
A: The minimum order quantity for the rock drill is 1 unit.
Q: Is the price negotiable?
A: Yes, the price is negotiable.
Q: What are the packaging details for the rock drill?
A: The packaging details for the rock drill are 1 Unit in 1*40'HQ.
Q: How long is the delivery time for the rock drill?
A: The delivery time for the rock drill is 45 working days.
Q: What are the payment terms for the rock drill?
A: The payment terms for the rock drill are T/T and L/C.
Q: What is the supply ability for the rock drill?
A: The supply ability for the rock drill is 120 units per year.
|
|
