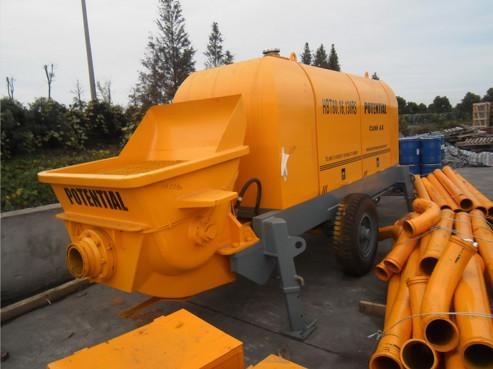

1400rpm Speed Stationary Diesel Concrete Pump HBT60.16.130RS
Stationary Concrete (Trailer) Pump Diesel Concrete Pump
Applications:
Introducing the KEDA / POTENCY Concrete Pump HBT60.16.130RS, a high-quality cement pumping apparatus that is perfect for all your construction needs. Made in CHINA and certified with ISO9001:2015, this product is guaranteed to exceed your expectations in terms of quality, efficiency, and performance. With a minimum order quantity of 1 unit, the price is negotiable and payment can be made through T/T or L/C.
This Concrete Pump is equipped with a Mortar Transportation System that can easily transport concrete, cement, and other materials to various locations on the construction site. This feature is especially useful for large-scale projects where the transportation of materials is crucial to the overall success of the project.
The Cement Pumping Apparatus is also designed to be highly efficient, allowing for fast and accurate delivery of materials. This feature is essential for projects where time is of the essence, as it can help speed up the construction process and save you both time and money.
In addition, the Grout Dispensing System is another great feature of this Concrete Pump. This system allows for the easy and accurate dispensing of grout, which is essential for many construction projects. With this system, you can rest assured that your grout will be dispensed quickly and accurately, without any waste or mess.
With a supply ability of 180 units per year and a delivery time of 20 working days, you can trust that this product will be readily available whenever you need it. The packaging details are also convenient, with 1 unit in 1*40'HQ, making it easy to transport and store on your construction site.
Overall, the KEDA / POTENCY Concrete Pump is a top-of-the-line product that is perfect for any construction project. Its high-quality features, including the Mortar Transportation System, Cement Pumping Apparatus, and Grout Dispensing System, make it an essential tool for any construction team.
Features
■ Main Hydraulic Pumps are Rexroth products.
■ The high and low pressure conversion of the outlet pressure can achieve large discharge at low pressure and small discharge at high pressure.
■The open loop of the hydraulic system is air cooled to keep the oil temperature under general conditions so as to ensure the stability of the system.
■ The reversing control is electric-hydraulic type.
■ Main electric elements are Omron and Schneider
■ The counterforce on specially designed “S” valve is received by hopper wall to assure the service life of goggle plate and cutting ring.
Specifications
| Models | HBT60.16.130RS diesel | HBT80.13.130RS diesel | HBT80.16.174RS diesel |
| Max theory concrete output (m3/h) | 67/44 | 87/53 | 84 |
| concrete pumping pressure(High/Low) MPa | 16/11 | 13/8 | 16 |
| concrete cylinder diameter * stroke(mm) | Φ200*1600 | Φ200*1600 | Φ200*1800 |
| Power (KW) | 130 | 130 | 174 |
| Rated speed (rpm) | 1400 | 2300 | 2300 |
| Hopper capacity (L) | 800 | 800 | 800 |
| Filling height on supports (mm) | 1400 | 1400 | 1450 |
| Max. theory delivery distance (horizontal height) (m) | 650 | 650 | 780 |
| Max theory delivery distance (vertical height) (m) | 150 | 150 | 200 |
| Oil Tank (L) | 500 | 500 | 500 |
| Overall dim. (mm) | 6400*2160*2800 | 6400*2160*2800 | 6400*2160*2800 |
| Total weight (Kg) | 6400 | 6400 | 6400 |
Q: What is the brand name of the Concrete Pump?
A: The brand name of the Concrete Pump is KEDA / POTENCY.
Q: What is the model number of the Concrete Pump?
A: The model number of the Concrete Pump is HBT60.16.130RS.
Q: What is the certification of the Concrete Pump?
A: The Concrete Pump is certified with ISO9001:2015.
Q: What is the place of origin of the Concrete Pump?
A: The Concrete Pump is made in China.
Q: What is the minimum order quantity for the Concrete Pump?
A: The minimum order quantity for the Concrete Pump is 1 unit.
Q: What is the price of the Concrete Pump?
A: The price of the Concrete Pump is negotiable.
Q: What are the payment terms for the Concrete Pump?
A: The payment terms for the Concrete Pump are T/T and L/C.
Q: What is the supply ability of the Concrete Pump?
A: The supply ability of the Concrete Pump is 180 units per year.
Q: What is the delivery time for the Concrete Pump?
A: The delivery time for the Concrete Pump is 20 working days.
Q: What are the packaging details for the Concrete Pump?
A: The packaging details for the Concrete Pump is 1 unit in 1*40'HQ.
|
|
