High-Performance Concrete Pump HBT100.18.195RS for high-rise building

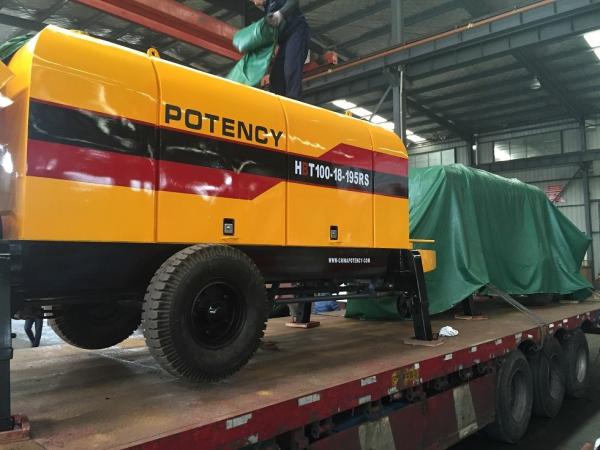

HBT100.18.195RS Stationary Concrete Pump (Trailer Type)
Applications:
Introducing the KEDA / POTENCY Concrete Pump HBT100.18.195RS, a high-quality cement pumping apparatus that is perfect for all your construction needs. Made in CHINA and certified with ISO9001:2015, this product is guaranteed to exceed your expectations in terms of quality, efficiency, and performance. With a minimum order quantity of 1 unit, the price is negotiable and payment can be made through T/T or L/C.
Construction sites: Drag type concrete pumps are widely used in concrete transportation, grouting, and spraying on construction sites, with the advantages of high efficiency, speed, and convenience, which can help workers complete a large amount of concrete work in a short time.
Underground engineering: In underground engineering such as tunnels
and basements, due to the small space and high construction
difficulty, trailer concrete pumps can solve the problem of
concrete transportation caused by factors such as terrain and
landforms.
High rise buildings: In the construction of high-rise buildings,
trailer concrete pumps can greatly improve construction speed and
efficiency, avoiding the high cost and low efficiency of
traditional manual transportation methods.
Infrastructure: In infrastructure construction such as bridges and
water conservancy projects, trailer concrete pumps can
significantly improve construction efficiency and are suitable for
tasks with large quantities and tight deadlines.
Other applications: The mixing and mopping pump can also be used
for transporting green soil, grouting foundation piles, and
transporting silt.
Features
1. Easy to move, strong and flexible
2. Stable and reliable, longer service life
3. Reliable and efficient, saving labor
4. Automatically add water
5. Fuel saving
6. Advanced dual hydraulic system
7. Uniform and stable spraying
8. Long life of mortar piston
9. Reduce pumping resistance
10. Cleaning is safer and faster
Specifications
| Parameters | Unit | HBT100.18.195RS |
| Max. theory concrete output | m³/h | 103/61 |
| Max. theory concrete pumping pressure | Mpa | 10/18 |
| Max. theory delivery distance (Vertical and horizontal) | m | 180/900 |
| Type | S valve | |
| Concrete cylinder diameter x stroke | mm | Ф200x1800 |
| Hopper capacity | m³ | 0.8 |
| Rated power of main motor | KW | 195 |
| Total weight | Kg | 6900 |
| Oil tank | L | 500 |
| Overall dimensions(L x W x H) | mm | 6800*2150*2830 |
|
|
